Focus not obscured

  • WCAG
  • Keyboard

The Web Content Accessibility Guidelines 2.2, or WCAG 2.2 for short, introduced eight new criteria. Two of them are related to the headache of keyboard users (and also the accessibility specialists community): The obscuring of a focused element by other content. These are the level AA criterion 2.4.11: Focus Not Obscured (Minimum) and the level AAA one 2.4.12: Focus Not Obscured (Enhanced).

Short explanation

According to the level AA criterion 2.4.11, elements in a focused state must be at least partially visible when they are overlapped by others.

Exceptions to this criterion include elements activated by the user and components that can be moved around the page, for example, by dragging.

Another exception is the focus indicator itself, such as the button's outline. There is a separate criterion for this: 2.4.12 (AAA).

Problematic patterns

Both criteria prevent navigation issues for keyboard users. For example, they aim to eliminate situations where items from a dropdown menu are reachable via keyboard but are not visible at the same time.

Elements with a keyboard focus can also be obscured by:

  • Other dropdown elements (combo boxes, hamburger menus, date pickers)
  • Sticky, fixed elements (headers, footers, sidebars, cookie banners)
  • Pop-ups (chatbot messages, notifications, tooltips, and other hints)
  • Non-modal and (pseudo)modal dialog boxes without focus trap (cookie information or newsletter subscription)
  • Movable elements (stickers on a virtual Kanban board).

Common real-life cases

Not all dropdowns are bad. The criteria consider two main cases, each with a dropdown. The first case is an open-by-default element, for example, a sidebar menu with navigation. The second situation is an incorrectly coded dropdown. For instance, cumbersome navigation with submenus opens with the keyboard and doesn’t close by pressing the Esc key.

It’s possible that fixed navigation with a lot of items doesn’t meet the minimum criterion. In this case, the focus problem becomes especially noticeable when you navigate with the keyboard to the top of the page.

Fixed cookie banner is another problematic design pattern. Banners with controls and descriptive texts are at risk of violating the level AA criterion. In many cases, a cookie banner is the last element on a page. Keyboard users need to go to the bottom of the page to close the cookie message.

Pop-ups can also violate the minimum criterion 2.4.11. Annoying tooltips that automatically open when a related element receives focus, blocking part of the rest of the content until the very end. “Until the very end” means that only refreshing the page can help.

Dialog boxes are another level of pain. Most non-modal dialogs that are open by default and placed in the center of the screen will violate the level AA criterion 2.4.11. Again, the most common pattern here is cookie settings.

Just like with dropdowns, the criterion 2.4.11 allows modal dialogs. A modal dialog does not violate the criterion by itself, even if it’s not coded quite correctly. The user can always scroll the page with the modal dialog using a mouse or another pointing device. However, if the modal completely prevents keyboard focus from being set on elements behind it, that’s a violation.

Movable elements fail the minimum criterion when they obscure focusable elements before they are moved by users.

The case of semi-transparent elements

Elements with glass effect or opaque styles, such as semi-transparent tooltips and fixed navigation, are the second special case.

A special case described by 2.4.11 is elements with a glass effect or with an opaque background. Two of the examples are semi-transparent tooltips and fixed navigation.

Here, to meet the minimum criterion, a “translucent” component must also meet another criterion, 1.4.11: Non-text Contrast. For this, you check the contrast ratio between the color of the interactive element and the background of the overlaying one.

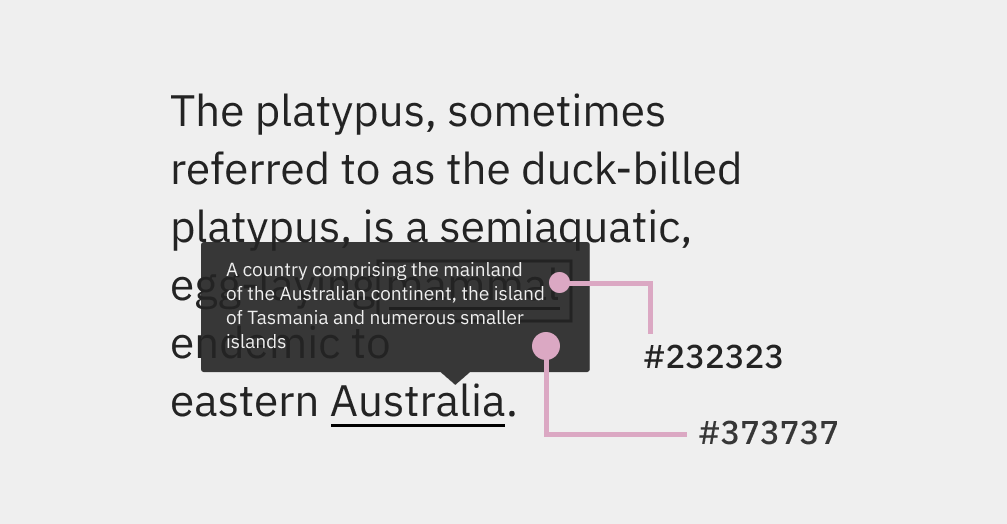

Imagine a semi-transparent tooltip that completely obscures a link. You need to compare the link color resulting from blending with the tooltip background and the background of the pop-up hint itself.

For example, the link color after blending with the background is #232323 (young night), and the background of the tooltip is #373737 (muted gray). The contrast ratio between colors is 1.32:1. Thus, criterion 2.4.11 is not met even if the partially hidden element is slightly visible. In cases like this, what “slightly” means is clearly defined by other criteria.

The tooltip has an opaque background that completely obscures the link in text about a platypus.
An opaque tooltip example.

In this imaginary example, we didn’t compare the color of the focus indicator. The only two cases we care about the appearance of the indicator are:

  • If the focus indicator is inside the focused element
  • If the element in a focus state changes significantly.

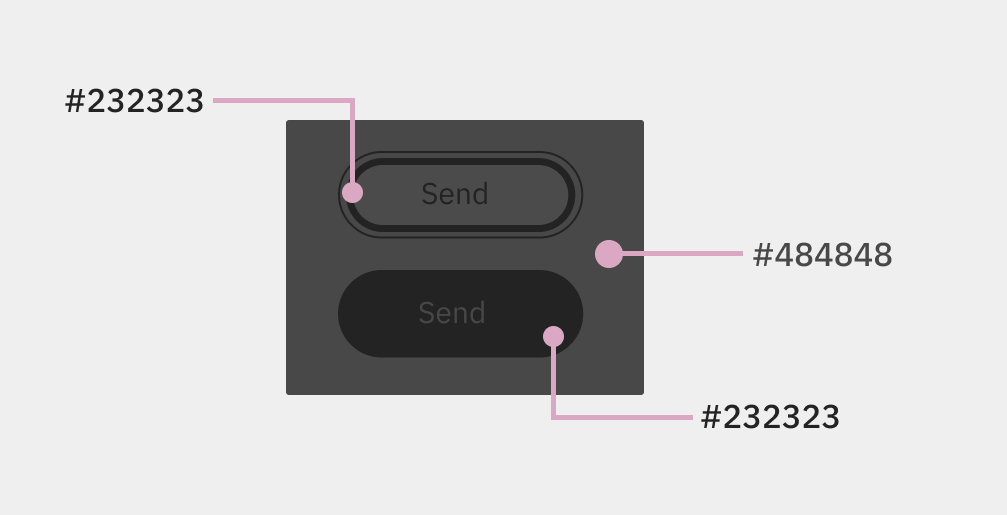

In the case of a button with an inner outline, compare the color of the outline with the background of the overlapping element. For a button that, when focused, changes its background, you need to compare its new background color with the background of the other element.

Buttons are covered by a semi-transparent top layer.
Two types of focused buttons.

Complicated cases

It would seem that everything is clear. Nevertheless, while studying the new criteria, I came up with a couple of questions:

  • How should we check card elements with images, headings, and short descriptions? For example, a link containing both text and graphics (or only graphics), where only part of the image is visible.
  • What should be done with a focused link when its text blends into the background of the page and only the outline is visible? After all, even if the link is partially overlapped, we can’t see the element itself.

At the time of writing this text, I haven’t found any clear answers to these questions in the WCAG documentation.

Meaning for users

As I mentioned at the beginning of the article, partially or completely obscured elements in the focus state are a barrier for keyboard users.

Screen magnifier users who combine them with keyboard navigation also need to be able to see elements in a focused state.

It's also important for users of alternative inputs. They are still visually navigating through interface. For example, during voice control or eye tracking. Don’t forget about those who use pointers for navigation outside of the usual mouse, like styluses, head pointers, or joysticks.

Finally, it’s also essential for neurodivergent users with disabilities affecting memory and attention. For example, people with Attention Deficit Hyperactivity Disorder (ADHD), Long COVID, or Traumatic Brain Injuries (TBIs). Such users may get distracted more often than others and forget their current position and recent actions on the page.

How to meet the criteria

The simplest solution is not to fix cumbersome navigation in the header and footer, especially on small screens. You can save space by reducing the sticky header height during scrolling.

The CSS property scroll-padding could be handy. The property increases the distance between the fixed element and the rest of the page content.

Don’t abuse automatically opening non-modal dialogs and interface hints that can’t simply be closed with Esc. If you have a lot of free space along the edges of the page, such elements can be safely placed there.

Code modal dialogs correctly. Don’t allow keyboard users to go to the page without pressing dialog buttons or keyboard keys to close the window.

To solve the problem with cookie messages that cover everything, you can

  • Place it at the top of the page, and don’t fix it at all
  • Show it as the true modal dialog.

Meet-the-criteria examples

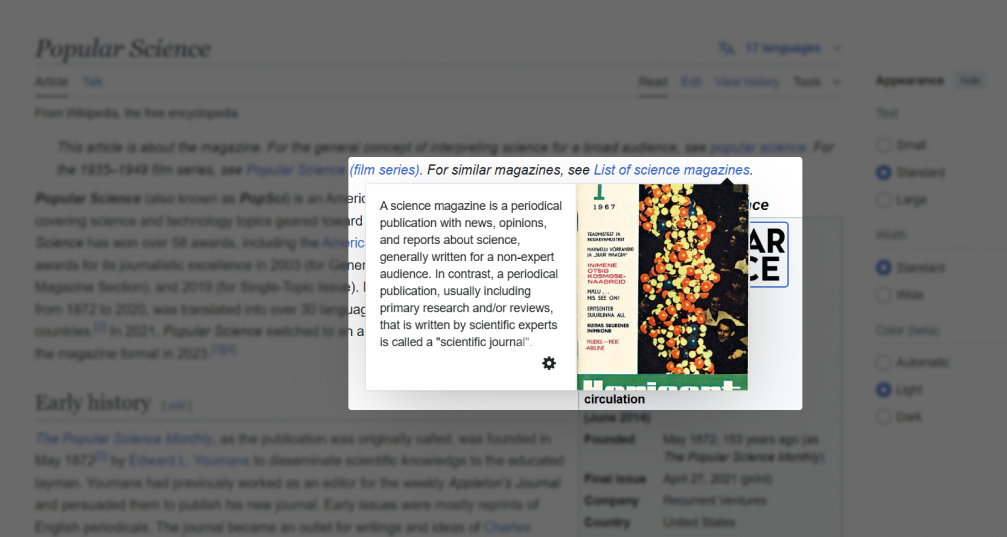

Encyclopedia link previews. When you focus on links in Wikipedia, tooltips with images and text appear. The open tooltip partially obscures some links. The element disappears when you go to a new link and cannot be closed with Esc.

The link to the list of all issues has the open tooltip. The element partially obscures the image with text surrounded by a blue outline. We can see the last letter “AR” from the first word and the letter “CE” from the second word.
The “Popular Science” magazine article on Wikipedia.

Since the tooltip only partially obscures elements in a focus state, the page complies with the criterion 2.4.11: Focus Not Obscured (Minimum).

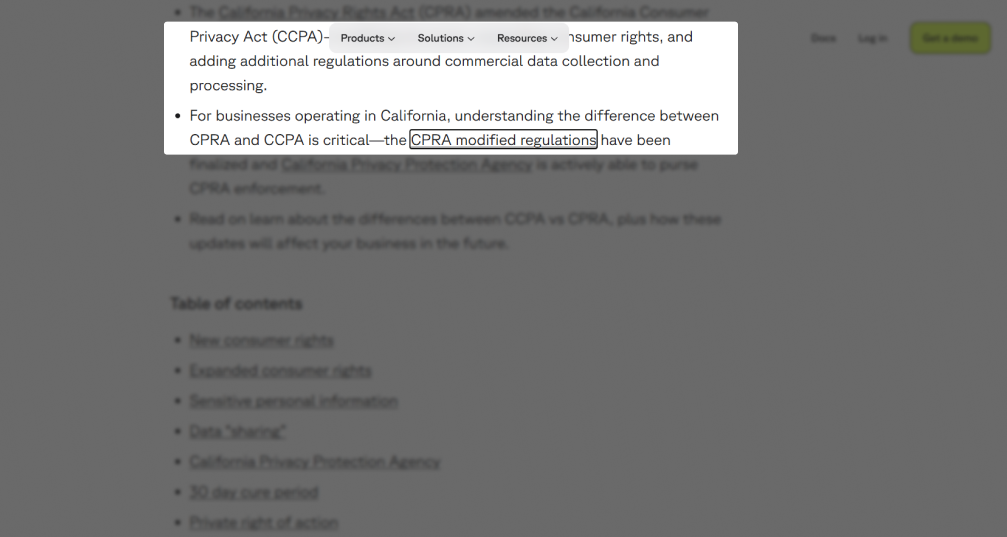

Blog fixed header. In the Transcend blog, the fixed header is moving when you scroll the page. If you use the keyboard for page navigation, the header doesn’t obscure controls.

There is a sticky navigation with three items at the top of the page. The element obscures a part of the text. The “CPRA modified regulations” link is outlined with a black border and isn’t obscured by the overlay.
The Transcend blog post.

The page complies with the level AAA criterion 2.4.12: Focus Not Obscured (Enhanced).

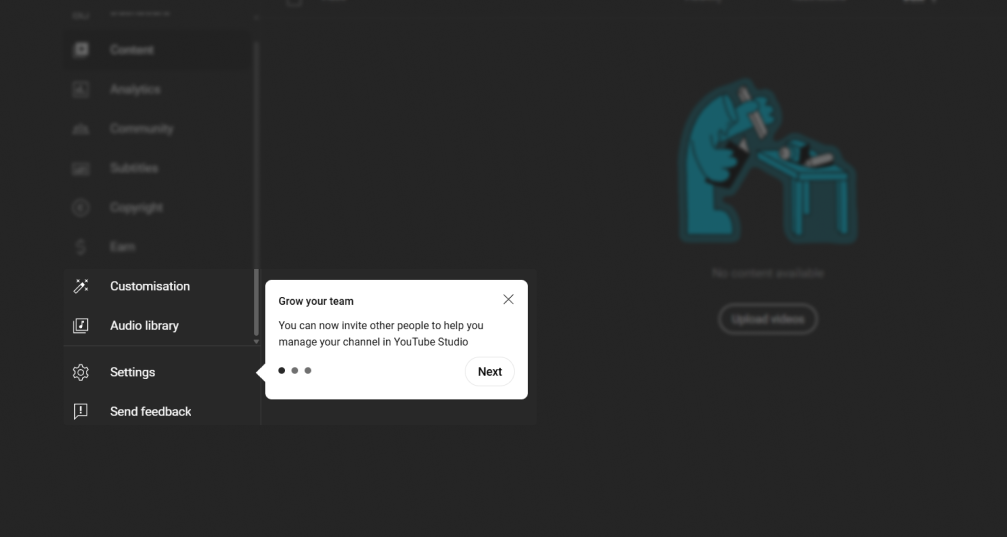

YouTube Studio hints. In the main tab of YouTube Studio, the notification with an interface hint automatically appears. This element doesn’t cover active links. The page pass the level AA criterion 2.4.11.

The opened tooltip with hints on team collaboration is near the side navigation. The tooltip’s tail points to the “Settings” item. There are no other interactive elements near the tooltip.
YouTube Studio.

Not-complying examples

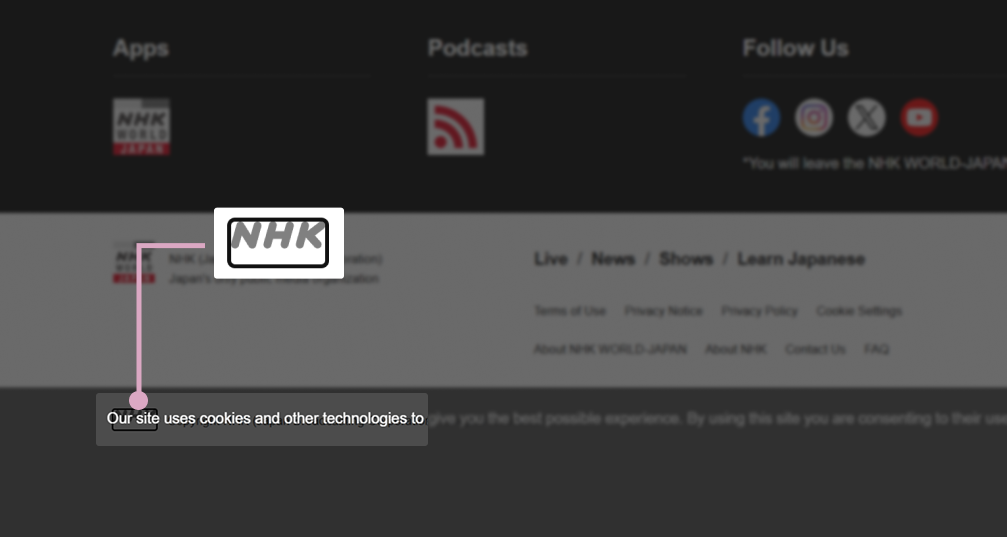

NHK World Japan and the semi-transparent cookie banner. On the homepage of the NHK World Japan broadcasting company, a cookie banner with a semi-transparent background is fixed at the bottom of the page. Some controls are partially hidden behind the banner when navigating the page using the keyboard.

The banner completely obscures one of the footer links. Since the banner background is semi-transparent, we need to check the contrast. The link text color is #808080 (gray), and the cookie banner background is #4c4c4c (quartz gray). The contrast ratio between the two colors is 2.17:1, which is below the minimum value for non-text elements (3:1). Because of this, the website doesn’t meet the level AA criterion 2.4.11.

Part of the text “Our site uses…” from the semi-transparent banner obscures the “NHK” link. The link outline contains a black border, and only the top part of the letters is visible. Nearby, you can see the same link when it’s not obscured.
The NHK World Japan homepage.

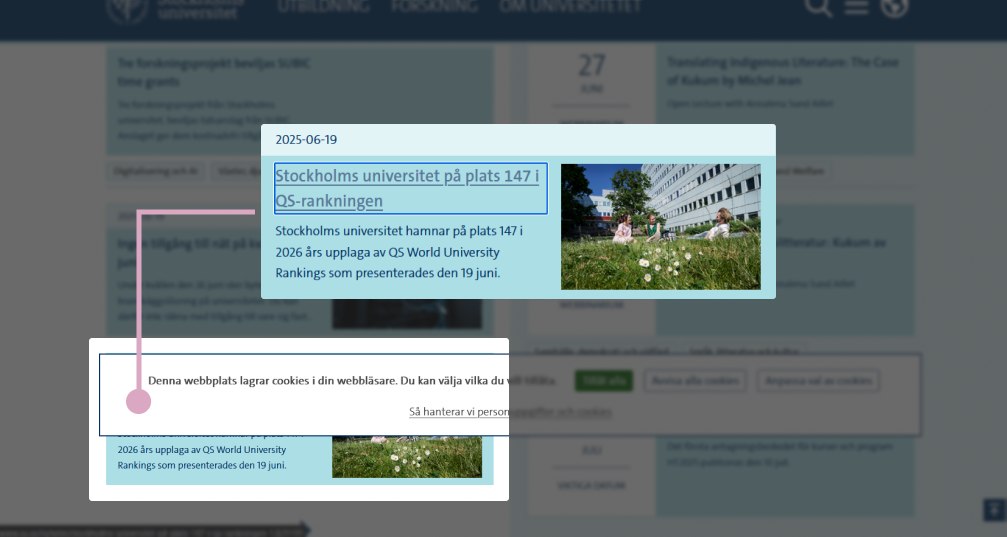

University website with a non-modal cookie banner. On the Stockholm University website, the non-modal dialog with cookie information is centered on the screen.

The non-modal dialog obscures some focused links completely. Based on that result, the website doesn’t meet the minimum criterion 2.4.11.

The banner with a non-transparent background obscures the card element. We can see the description and part of the image of a flower field. Nearby, the not obscured card is shown. The link “Stockholms universitet paa plats 147 i QS-rankningen” is outlined with a blue border.
The Stockholm University homepage.

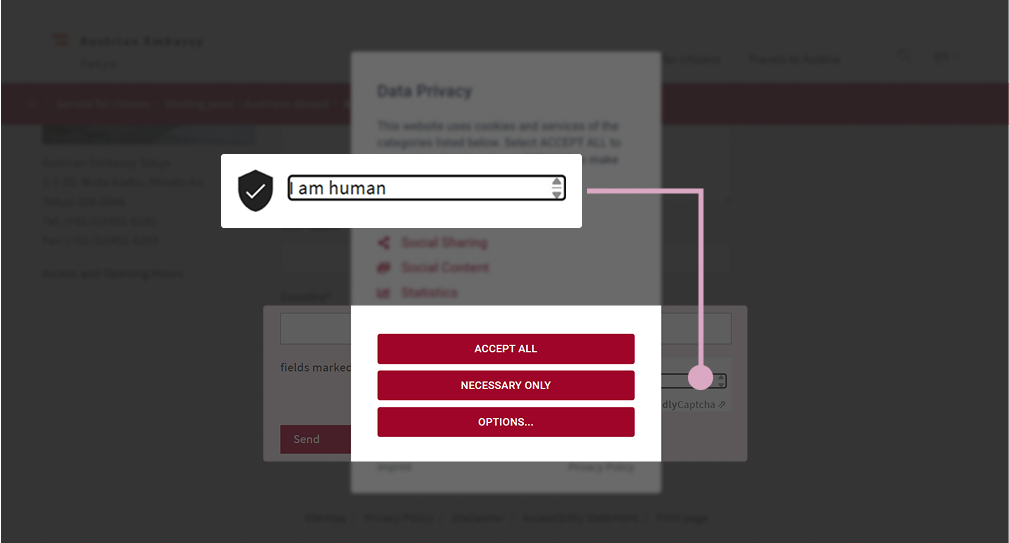

(Pseudo-)modal cookie banner. When you first open the homepage of the Austrian Embassy in Tokyo, a dialog with a cookie message appears. Visually, because of the darkened background, the dialog looks modal. However, you can still navigate through the page with the keyboard while the dialog is open. As a result, the some fields labels, links, and buttons are completely obscured. This means the page doesn’t meet the level AA criterion 2.4.11.

The cookie settings dialog partly obscures the form field. We can see a small part of the field’s focus indicator. The other screenshot shows the version of the input filled with the text “I am human”.
The Austrian Embassy in Tokyo homepage.

Test methods

Both criteria can be tested automatically and manually.

Bookmarklets can help with automated testing. That is, they can theoretically help. So far, I haven’t come across any existing solutions that simultaneously display focus styles for all controls and bring the necessary components to the interface top layer.

A temporary semi-automatic solution is the single bookmarklet Show focus styles and manually open windows, dropdowns, and similar elements.

For manual testing, you’ll need a keyboard. The approximate testing steps are as follows:

  1. Make sure there are controls on the page (buttons, links, etc.)
  2. Find overlay elements
  3. Navigate between controls using Tab and Shift Tab
  4. Repeat the previous steps for other breakpoints.

Additional steps for controls obscured by opaque top layer elements:

  1. Find out the background color of the top element
  2. Determine the focused element color. Pick the mix of its original color with the background of the overlaying component (without the focus indicator's color)
  3. Check the contrast ratio between two colors.

You can test color ratio with color contrast checking tools. A few names of them are TPGi’s Colour Contrast Analyser (CCA) and Accessible Web’s WCAG Color Contrast Checker.

If every interactive element in a focus state is visible completely or partially, the page meet 2.4.11: Focus Not Obscured (Minimum) (Level AA).

If semi-transparent elements completely obscure controls in a focus state, and the contrast ratio between two colors is 3:1 and higher, the page also meet the level AA criterion.

When no focused element is obscured by others, the page meet 2.4.12: Focus Not Obscured (Enhanced) (Level AAA).
